Product Description:

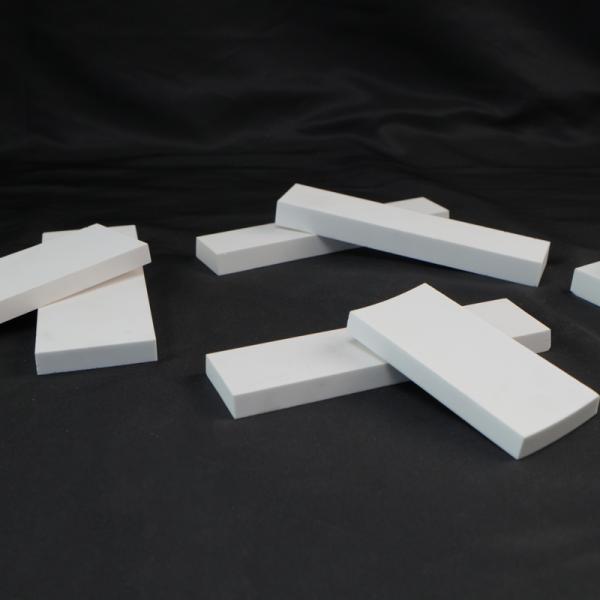

Aluminum oxide ceramic tiles are mainly composed of high-purity aluminum oxide (Al ₂ O3), with a content of up to 90% -99.9%, and have excellent physical and chemical properties. Its Mohs hardness is as high as level 9, second only to diamond, and its wear resistance is 266 times that of manganese steel, which can effectively resist high wear environments. In addition, the melting point of alumina ceramic tiles is as high as 2050 ℃, and the long-term use temperature can reach 1600 ℃, making it suitable for extreme high temperature scenarios. It has excellent chemical stability, resistance to strong acid and alkali corrosion, and a weight loss of less than 0.01g after soaking in 30% sulfuric acid for one year. Its electrical insulation performance is also excellent, with a resistivity exceeding 10 ¹⁴Ω· cm, making it an ideal material for the electronics industry.
Features:
- Alumina Ceramic Tiles
- Thermal Shock Resistance: High
- Temperature Resistance: Up To 1800°C
- Compressive Strength: 2000 MPa
- Hardness: 9 On Mohs Scale
- Size: 130*50*15mm (can be manufactured according to customer requirements).
Technical Parameters:
| Compressive Strength |
2000 MPa |
| Impact Resistance |
High |
| Size |
130*50*15mm |
| Wear Resistance |
High |
| Item |
Alumina Ceramic Tile |
| Chemical Resistance |
Excellent |
| Material |
95% Alumina Ceramic |
| Hardness |
9 On Mohs Scale |
| Temperature Resistance |
Up To 1800°C |
| Color |
White |
Applications:
Alumina ceramic tiles have become an indispensable basic material in the electronics industry due to their excellent insulation performance and high-frequency characteristics. Its production process is rigorous and precise. Firstly, high-purity alumina powder (purity ≥ 95%) is selected as the raw material, and a small amount of binder (such as polyvinyl alcohol) is added for mixing and granulation to ensure that the powder particles are uniform and have good flowability; Subsequently, the isostatic pressing process is used to press the powder into the desired shape of the substrate, shell, and other green bodies under high pressure (150-200MPa), ensuring uniform density of the green bodies and reducing subsequent sintering deformation; After forming, degreasing treatment is carried out to remove the binder in the green body and avoid the generation of bubbles during sintering; Finally, it is sintered at 1600-1700 ℃ in a high-temperature kiln to densify the green body and form structurally stable ceramic products. Some electronic ceramic tiles also need to undergo precision grinding to ensure dimensional accuracy and surface smoothness. Its volume resistivity is as high as 10 ¹⁴ -10 ¹⁶Ω· cm, and it can maintain stable insulation effect in high temperature environments, effectively avoiding the risk of circuit short circuit. In the production of electronic components, they are often processed into key components such as chip substrates and capacitor casings. For example, in the signal amplifier of 5G base stations, the substrate made of alumina ceramic tiles can withstand the high temperature generated by high-power components, while reducing signal interference and improving equipment operation stability. In addition, its excellent mechanical strength can protect precision electronic components from external impact and extend the product's service life
Support and Services:
Our Alumina Ceramic Tiles are designed to provide high-quality technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with installation guidance, product specifications, and troubleshooting any issues that may arise.
We offer comprehensive maintenance services to help prolong the lifespan of your Alumina Ceramic Tiles and ensure they continue to meet your expectations over time. Our technical support team is committed to delivering prompt and effective solutions to meet your needs.
Whether you have questions about product compatibility, performance optimization, or general inquiries, our dedicated support staff is here to help. Contact us for any assistance you may need regarding our Alumina Ceramic Tiles, and we will be happy to assist you.
FAQ:
Q: What is the brand name of these ceramic tiles?
A: The brand name of these ceramic tiles is HUAO.
Q: Where are these ceramic tiles manufactured?
A: These ceramic tiles are manufactured in China.
Q: How are these ceramic tiles packaged?
A: These ceramic tiles are packaged in wooden cases.
Q: What are the payment terms for purchasing these ceramic tiles?
A: The payment terms are either 100% in advance or 30% TT in advance with the balance payment before delivery.
